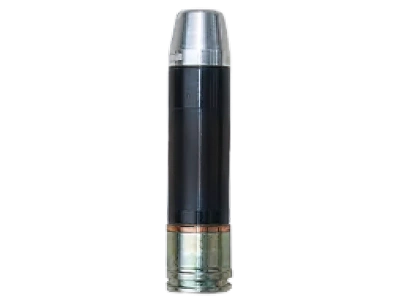

30x29 mm HEDP-SD Round
The 30x29mm High Explosive Dual Purpose Grenade with Self-Destruction (HEDP-SD) is intended to defeat enemy troops and light armoured vehicles at distance up to 1 700m.
Product details
The 30x29 mm HEDP-SD Round features dual purpose effects: Armour Penetration 30mm against hardened steel plate (RHA), and Fragmentation Effect with 5 m Effective Defeat Radius. The grenade features Self-destruction fuze.
Type
-
Role
Grenade Ammunition
Country of Origin
Different Countries
Introduction
Till Present
Note
-
The technical characteristics may have minor differences according to the different manufacturers of the given product. The manufacturers reserve the right to make changes to the specified parameters.
Caliber
30x29mm
Overall Lenght
132 mm
Time of Self-Destruction
26-38 s
Arming Distance
20728 m
Max Effective Fire Range
1700 m
Operational Temperature (min)
-50°C
Operational Temperature (max)
+50°C
Type of packaging
Wooden case
Weight of wooden case
47 kg
Quantity per pack
40 pcs in metal box (3 air-tight sealed metal boxes in wooden case)
Weight
47 kg
Number in a wooden case
120 pcs
Volume m3
0.072 m3
Dimensions of a wooden case
860x380x220 mm
UN Number
N/A
Weight of the package
47 kg
Hazard Class
N/A
