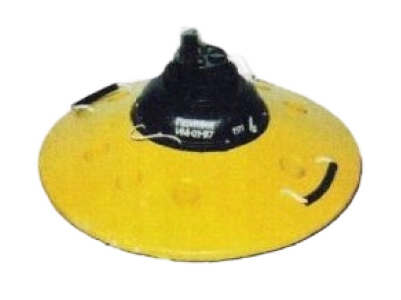

Amphibious Mine
The amphibious PDM1BM mine is a new generation bottom mine designed for building defense mine barriers at 2 m depth both in sea water or river water and inland waters (lakes, swamps, etc.).
Product details
N/A
Type
-
Role
Mine
Country of Origin
Different Countries
Introduction
Till Present
Note
-
The technical characteristics may have minor differences according to the different manufacturers of the given product. The manufacturers reserve the right to make changes to the specified parameters.
Deployment depth
0.8 – 1.5 mm
Mine spacing
> 10 m
Main charge
cast trinitrotoluene
Booster charge
pressed trinitrotoluene
Sensor system range
0.8 m
Safe time
35 min
Fighting condition maximum time
15 days
Fighting condition setting step
1 day
Sea waves resistance
5 ball
Power
9 V
Mine diameter
300 ± 5 mm
Mine height
450 ± 5 mm
Mine weight
85 ± 5 kg
Warhead weight
15 ± 5 kg
Main charge weight
12 ± 5 kg
Fuse weight
1.5 ± 0.02 kg
Booster charge weight
70 ± 0.05 g
Type of packaging
N/A
Weight of wooden case
N/A
Quantity per pack
N/A
Weight
N/A
Number in a wooden case
N/A
Volume m3
N/A
Dimensions of a wooden case
N/A
UN Number
N/A
Weight of the package
N/A
Hazard Class
N/A
