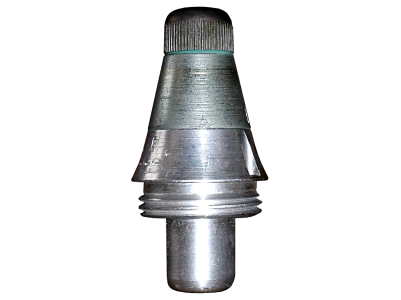

The O-4M fuze is intended for use on 82 mm fragmentation mortar bombs fired from the BM82, 2B14, and for use on the OG-7 fragmentation grenade for the RPG-7V. It serves to detonate the warhead on impact with the target. The fuze is a nose impact type with two settings – for instantaneous (fragmentation) and inertial (HE) action, semi-boresafe, with distant arming.

N/A

Type N/A

Role N/A

Country of Origin N/A

Introduction N/A

Note N/A

Type	\| Mechanical

Note	Weight, kg \| 0,183 Arming distance, m \| - with OG-7 grenade \| ≥3…25 - with mortar bomb \| ≥3 Safe drop height, m \| - in a mortar bomb \| 2,5 - in a grenade \| 2 Fixing thread \| Sp 36,18×10 turns in 1″ Safe operational temperature range, °C \| -40…50
