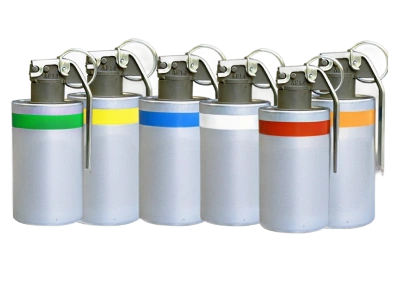

Smoke Hand Grenades
The Smoke Hand Grenades come in different colors and variations.
Product details
The Smoke Hand Grenades
SMK-O, SMK-W, SMK-R, SMK-B, SMK-G, SMK-Y
are intended for:
- communication and for signaling of territories and sites;
- creation of smoke-screen (cloud) and temporary cover of materiel and personnel;
- purposeful diversion;
- performance of special combat operations.
Type
-
Role
Hand Grenades
Country of Origin
Different Countries
Introduction
Till Present
Note
-
The technical characteristics may have minor differences according to the different manufacturers of the given product. The manufacturers reserve the right to make changes to the specified parameters.
Body diameter
51 mm
Height with fuse AF14
120mm
Weight
215 g
Fuze type
Igniting Delay Fuze AF 14
Time of delayed action after pulling the arming pin and releasing the handle
1.5 s + 2.3 s
Smoke colour
O - orange, W - white, R - red,B - blue, G - green, Y - yellow
Time for smoke creation
not less than 60 s
Filling
Pyrotechnic smoke composition
Smoke composition type
Colorant , oxide matter, fuel
Operation temperature range
from -20°C to +50°C
Type of packaging
Wooden case
Weight of wooden case
27 kg
Quantity per pack
60 pcs
Weight
27 kg
Number in a wooden case
20 Grenades in a metal box, 3 metal box in wooden case
Volume m3
0.072 m3
Dimensions of a wooden case
875x398x206 mm
UN Number
UN 0303
Weight of the package
27 kg
Hazard Class
1.4G
